Profire 2100

• Provides full monitoring and ignition of burner system

• Full LED readout display

• Monitors Process temperature

• High Temperature Shutdown

• Low Tank level Shutdown

• High Tank level Shutdown

• High Tank level Monitoring

• Monitors flame quality and strength

• 4-20mA capability for added instrumentation

• CSA Certified

• SCADA Ready

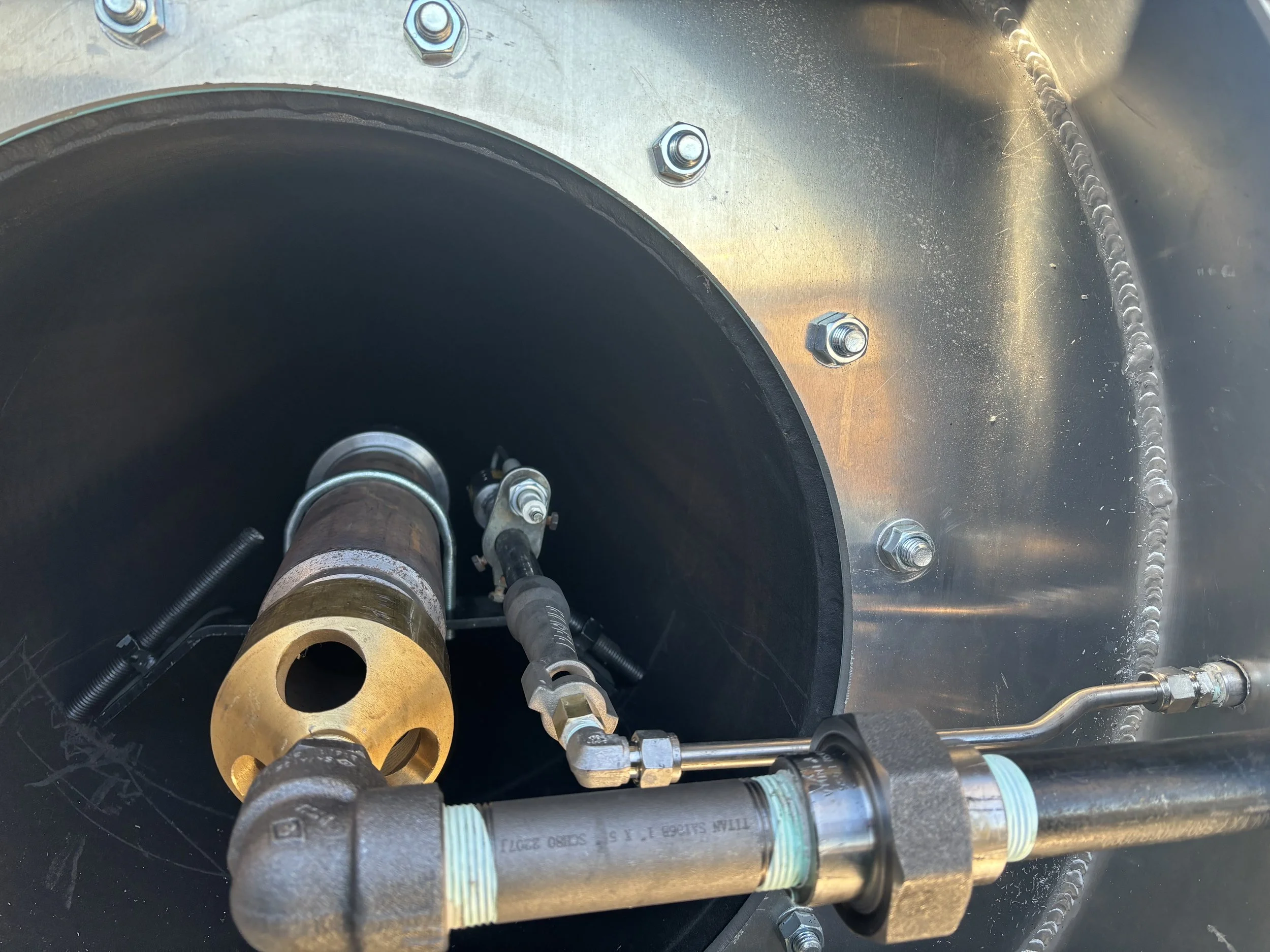

Heating Solutions International Inc. Offers a variety of Burner Tip Assemblies for Natural Draft Fire Tube applications.

Burner Tip Assemblies are in stock for the most common Fire Tube sizes such as 6″, 8″, 10″, 12″, 18” and 24”

Custom Burner Tip Assemblies are available for larger Fire Tube diameters and for unique Fire Tube applications.

The Heating Solutions Burner Tip Assemblies provide the client with the following advancements over the typical Burner Assembly:

• Ease of operation (no primary air adjustment required)

• Fast orifice changeability from natural gas to propane

• Lower input pressure required due to the Venturi design of the burner orifice

• Maximum heat displacement utilizing the potential of the Fire Tube

• Emission Reduction

• Easy Retro-fit Installation

Heating Solutions works with our clients to ensure site specific requirements are incorporated into the fuel train designs to allow for safe, reliable and code compliant burner system control.

• Engineered and Field Approved

• Proven Safe

• Efficient

• Cost Effective

• Easy to use

• 12VDC or 24 VDC applications

• Solar Applications

• Single Well Battery applications

• Facility Applications

• Sweet Service

• Sour Service

• Ability to integrate with existing pneumatic controls

Heating Solutions International Inc. provides and manufactures Natural Draft Flame Arresters for all tank or vessel Fire Tube applications.

The design purpose of the Flame Arrester is to provide adequate primary air for burner combustion while protecting the location from the ignition of atmospheric combustible gases. The flame arrester also prevents the passage of flame into the atmosphere.

Heating Solutions Flame Arresters are quality controlled through manufacturing and testing to ensure safe and correct operation and are manufactured of high quality aluminum. They can be designed to match several flange patterns for new or retro-fit applications.

All Heating Solutions Flame Arresters conform to the following design code and maintenance specifications:

• API 12N Reaffirmed 2008

• CSA Z343-98

Flame Arrester Options and Features:

• Hinged door for ease of use

• Side Compartment to house and protect the Burner Ignition Coil

• Multiple ports to include electrical fittings

• Heat Trace Preheater Package Capability

Heating Solutions International Inc. provides Integral Flame Arrester/ CSA b149.3-10 Fuel Train and Burner Management Controller within one safe, simple and reliable package.

Integral Package Benefits:

• Fast Installation

• Pre-Assembled

• Pre-Heat Traced

• Pre-Wired

• QC Tested

• Choice of Integrated Burner System Control Panel

Please call to speak with the Heating Solutions staff to see if the Integral 950 Package will work for your storage tank heating requirements.

Heating Solutions International Inc. provides Natural Draft Custom 30” Flame Arresters for Vessel and large fire tube applications. The design configuration of the flame arrester allows for a small foot print and can be utilized where space saving requirements need to be met.

Arrester Options and Features:

• High Btu/Hr. capacity

• Space Saving Design

• Large inspection window with removable service cover plate

• Custom fuel coupling placement allows for retrofit applications

• Can be custom manufactured to match existing flange pattern

• API 12N Reaffirmed 2008

• CSA Z343-98

Heating Solutions has the qualified personnel and experience to ensure that your future and existing Burner Management Equipment adheres to current code requirements as per CSA Standards.

Heating Solutions works with our engineering partner and each country inspection group to ensure that your Burner Equipment is fully certified at a fair price and is completely turn-key.

Call Heating Solutions today if you require CSAB149.3-15 Certification Services on your Burner Equipment and we will prepare a certification proposal tailor made to meet your needs.
